Security Check Baggage Screening Airport Bag Scanner Machine Dual Energy Generator
Factory Price Security Equipment X Ray Baggage Scanner SF5636
Model: SF5636
General Specifications
Tunnel Size : 560 (W) *360 (H) mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 150 kg
Single inspection dosage: < 1.01μGy
Leakage radiation: <0.06µGy/h
Wire Resolution: 40AWG
Steel Penetration: 40mm
Film Safety: For ISO&CE
X-RAY GENERATOR
Orientation: upward
Tube Current:0.4~1.25mA(adjustable)
Anode Voltage:80-160KV(adjustable)
Angle: 80°
Generator cooling/working periods: Sealed oil bath with forced air/100％
OPERATING ENVIRONMENT
Storage Temperature: -20oC to 60oC
Operating Temperature: 0oC to 45oC
Relative Humidity: 20 to 95% non-condensing
System Power: 220 VAC (±10%) 50±3HZ
Power wastage: 1.0 KW (Max)
Noise<55DB
X-RAY Sensor:
L-shaped array detector 24bit
Image Performance System:
Display: High-resolution 19 inch color LCD display
Color quality: 24-Bit real colors based on materials
Edge enhancement: Object contour edge is more distinct
Super image enhancement: Image detail is more distinct
High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
Magnifier: Partial magnifying function
Brightening/dimming: Increase/Decrease brightness of image
Image recurrence: Display the previous twenty images and process any one of them
Image restoration: Restore image to initial status
Image storage: Real-time store any image and process it in operation status
Multi-energy: High/low energy: Switch from high energy to low energy
Color material identification: Organic objects in orange, inorganic objects in blue,
mixture in green
Assist to detect drug and explosive powder
Special features:
Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
Safety ray: Ray is transmitted under automatic control, avoiding the error
One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
Eagle eye: Capable of expediently observing the magnifying area
Self-diagnosis function: Give message automatically if malfunction for prompt maintenance
Product Tags:
|
|

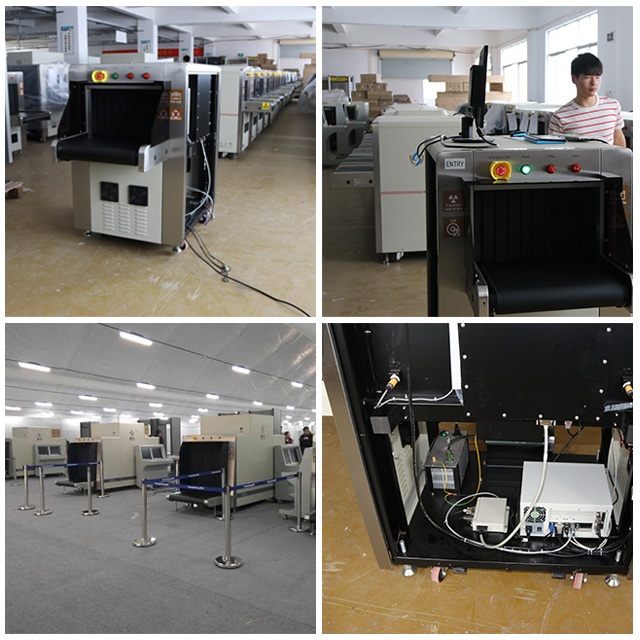

Security Check Baggage Screening Airport Bag Scanner Machine Dual Energy Generator Images
|
